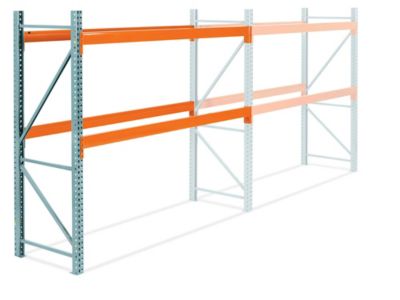

2 Shelf Pallet Rack Starter Unit - 108 x 36 x 96"

Maximize warehouse space! High-capacity storage for your heaviest pallet loads.
MODEL
NO.
DIMENSIONS
W x D x H
NO. OF
LEVELS
BEAM
HEIGHT
BEAM CAP.
(LBS./PAIR)
PRICE EACH WT.
(LBS.)
ADD TO
CART
1 3 6+
H-7462 108 x 36 x 96" 2 1/2" 5,000 $379 $369 $359 209 ADD
SHIPS UNASSEMBLED VIA MOTOR FREIGHT
DIMENSIONS:
  • Outside Width: Add 6" to listed dimensions.
  • Uprights: 3 x 1 5/8"
  • Beams:
    • Usable: 108 x 2 3/4 x 4 1/2" (W x D x H)
      • Overall Beam Width: Add 3" to listed dimensions.
    • Step: 1 5/8"
    • Ledge: 1"
    • Slotted at 1" centers on ledge.


COMPATIBILITY:
  • Works with H-3720, H-3721 and H-4904 Steel Rack Protectors.
  • 42" Deep Pallet Racks: Work with H-4905 & H-4906 End of Rack Protectors.

FEATURES:
  • Beams: 3 Rivet connection.
    • Automatically set & lock into the uprights.

CAPACITY:
  • All capacities listed are based on evenly distributed loads.
  • Upright Frame Capacities:
Distance Between LevelsLB Cap.
< or Equal to 36"23,400
42"21,900
48"19,300
54"16,700
60"15,000
66"13,400
72"11,700
78"10,300
84"9,100
90"8,000
96"7,100

USAGE:
  • Units are not stackable.

SPECIFICATIONS:
  • Meets:
    • 2012 RMI (Rack Manufacturers Institute)
    • 2011 AISI (American Iron and Steel Institute)
  • Brand: Interlake
  • Racks are for non-seismic applications.


SPECIFICATIONSMETRICIMPERIAL
BEAM CAPACITY (WEIGHT/PAIR)2268 Kg5,000 lbs.
BEAM HEIGHT114 mm4.5"
WEIGHT95 Kg209 lbs.
WIDTH x DEPTH x HEIGHT274 x 91 x 244 cm108 x 36 x 96"
H-7462 -
