Heavy Duty Steel Dumping Hopper - 1 Cubic Yard

Made for really tough jobs. Safely transport and dump heavy loads.
  • All-welded steel construction.
  • Simply pull cable from the seat of your forklift to release hopper.

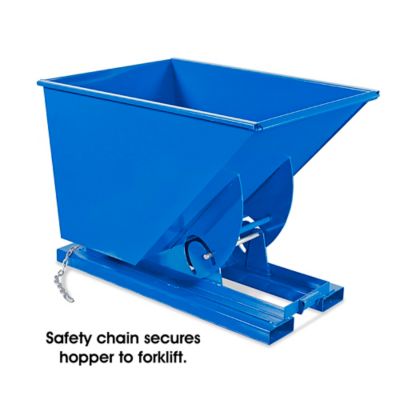

  • Safety chain secures hopper to forklift.
  • 6,000 lb. capacity.
  • Optional Steel Casters and Lids available.

    Dumping Hopper
MODEL
NO.		 DESCRIPTION SUGGESTED
USE		 CUBIC
YARD		 CAP.
(LBS.)		 OVERALL DIM.
L x W x H		 FORK POCKET
CENTERS		 WT.
(LBS.)		 PRICE EACH IN STOCK
SHIPS TODAY
1 2+
H-2110 Heavy
Duty		 Concrete,
Metal		 1 6,000 61 x 42 x 43" 18" W 579 $1,845 $1,810  ADD
SHIPS ASSEMBLED VIA MOTOR FREIGHT
DIMENSIONS:
  • Overall (Actual): 60 1/2 x 41 1/2 x 43" (L x W x H)
  • Inside:
    • Height: 32 9/16"
    • Length at Opening: 54 3/4"
  • Bottom (Inside): 37 3/4 x 20 15/16" (W x L)
  • Front/Dumping Chute: 37 3/4 x 43 1/16" (W x L)
  • Fork Pockets: 7 1/2 x 2 1/2" (W x H)
  • Safety Chain (Length):
    • Overall: 36"
    • Usable: 28"
  • Steel Cable: 4' 6"
SIZE:
  • Will not fit through a standard doorway (32" clearance).
THICKNESS:
  • Body: 8 gauge
  • Base: 3 gauge (1/4")
  • Safety Chain: 5/16"
TEMPERATURE:
  • -20° to 135° F
COMPATIBILITY:
  • Not compatible with pallet trucks.
FEATURES:
  • 76° dumping angle
CAPACITY:
  • 1 Cubic Yard=
    • 201 gallons
    • 27 Cubic feet
    • 21.7 Bushels
USAGE:
  • Hopper does not have a bumper release.
    • Bumper kit available separately to make hopper self-dumping (H-5269).
  • Not leakproof.
COMPATIBLE CASTERS: (Hardware not included.)
6" PolyolefinH-3322
6" RubberH-3326
6" SteelH-2112*
8" PolyolefinH-3323
8" RubberH-3327
8" PneumaticH-3328
Gray Kit: H-2505CASKIT*
Black Kit: H-2473CASKIT*
10" PneumaticH-3329
                                                           *Hardware included.
Ships Via Motor Freight
Availability: In Stock
Unit Weight: 579 lbs.
Instructions
Parts List
Catalog Page 431
Email Item
Country of Origin: USA
SPECIFICATIONSMETRICIMPERIAL
VOLUME0.8 cu. M1 cu. yd.
CAPACITY2722 Kg6,000 lbs.
OVERALL LENGTH x WIDTH x HEIGHT155 x 107 x 109 cm61 x 42 x 43"
FORK POCKET CENTERS46 cm W18" W
WEIGHT263 Kg579 lbs.
Ships Via Motor Freight
Availability: In Stock
Unit Weight: 579 lbs.
Instructions
Parts List
Catalog Page 431
Email Item
Country of Origin: USA
PARTS:
  • H-2108-D100 Release Lever Assembly Kit for Dumping Hoppers - 1/2 and 1 Cubic Yard
  • H-2641-SPRG Torsion Spring for Steel Dumping Hoppers
