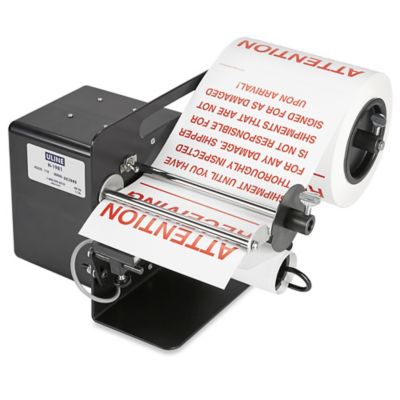

Automatic Label Dispenser - 6"

High-speed, low-maintenance dispenser for pressure-sensitive labels.
  • Automatically advances, peels and releases labels from liner.
  • 115 volts. 4 1/2' power cord.
  • 7" per second speed.
MODEL
NO.
OVERALL DIM.
L x W x H
MAXIMUM LABEL MAX. ROLL
DIAM.
CORE
DIAM.
WT.
(LBS.)
PRICE EACH IN STOCK
SHIPS TODAY
WIDTH LENGTH 1 2+
H-1981 11 1/23/48" 3/8 - 6" 3/4 - 12" 9" 1-3" 13 $680 $665  ADD
COMPATIBILITY:
  • Works with Inventory Labels.
  • Not compatible with Clear Acetate Labels.
FEATURES:
  • Photo-eye:
    • As a label is removed, the next one will advance.
    • When the photo-eye recognizes the next label, roll stops advancing.
SPECIFICATIONSMETRICIMPERIAL
LENGTH x WIDTH x HEIGHT29 x 25 x 20 cm11 1/2 x 9 3/4 x 8"
MAXIMUM LABEL WIDTH10 - 152 mm3/8 - 6"
MAXIMUM LABEL LENGTH19 mm - 30 cm3/4 - 12"
MAX. ROLL DIAMETER23 cm9"
CORE DIAMETER25 - 76 mm1-3"
WEIGHT6 kg13 lbs.
PARTS:
  • H-1276-172 1" Collar with Screw for Automatic Label Dispenser
  • H-1276-176 Side Guide with Screw for Automatic Label Dispenser
  • H-1276-201 Core Insert for Automatic Label Dispenser
  • H-1276-45105 Photo Eye Assembly for Automatic Label Dispensers
