Foot-Operated Impulse Sealer - 24"

Ideal for high-volume poly bag sealing. Keep both hands free for quicker and more accurate sealing.
  • Variable timer control lets you seal all types of plastic films up to 24" wide and 8 mil thickness.
  • Foot pedal operation. Standing height is 34".
  • 110 volts.
  • Sealer with Built-In Cutter available.
  • Service Kit with replacement heating element available.
MODEL
NO.		 SEAL
L x W		 MAX. SEAL
THICKNESS		 SHPG.
LBS.		 PRICE
EACH		 IN STOCK
SHIPS TODAY
H-86 24 x 1/16" 8 mil 56 $499  ADD
DIMENSIONS:
  • Ground to: (Not adjustable)
    • Bottom Seal Bar: 32"
    • Inside of the Top Seal Bar: 34"
    • Outside of the Top Seal Bar: 35"
  • Operating Board (Width): 11 1/2"
  • Throat Depth: 3 1/2"
  • Working Plate:
    • Overall: 12 x 6 x 1 1/2"
    • Height: Adjusts by 6 1/2"
MATERIAL:
  • Metal
TEMPERATURE:
  • 446° - 464° F
COMPATIBILITY:
  • Cannot Seal: Vinyl Bags
  • Can Seal:
    • Bags up to 8 mil.
    • Up to 1/8" thick foam.
MylarPolypropylene
NylonPolyurethane
Metalized Food Bags (Up to 2.5 mil)PVC
PolyethyleneStatic Shielding
No Airtight Seal:
3/16" and 5/16" Bubble
INCLUDES:
  • (2) Elements
  • (1) Fuse
USAGE:
  • Standing height is not adjustable.
SPECIFICATIONS:
  • 10 amps
  • International commodity code 8422,30,00,00-8
PACKAGING:
  • Protective plastic on sealing surface needs to be removed before first use.
REPLACEMENT PARTS:
Availability: In Stock
Unit Weight: 49 lbs.
Instructions
Parts List
Catalog Page 155
Email Item
National Stock Number
3540-01-465-7631
SPECIFICATIONSMETRICIMPERIAL
SEAL LENGTH x WIDTH61 x 0 cm24 x 1/16"
MAX. SEAL THICKNESS406 Micron16 mil
SHIPPING WEIGHT25 kg56 lbs.
Availability: In Stock
Unit Weight: 49 lbs.
Instructions
Parts List
Catalog Page 155
Email Item
National Stock Number
3540-01-465-7631
PARTS:
  • H-204 24" Service Kit for H-86 Foot-Operated Impulse Sealer
  • H-86-010 Rubber Pressure Pad for Foot-Operated Impulse Sealer - 24"
  • H-86-034 Heating Element Fix Assembly Kit for Foot-Operated Impulse Sealers

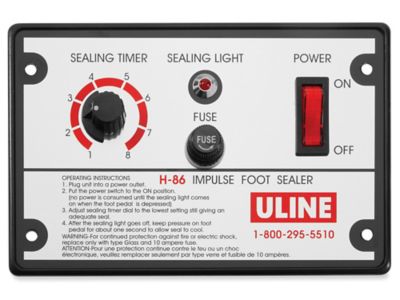

  • H-86-10AMPCP Timer Control for Foot Operated Impulse Sealer - 10 amp
