Bolt-On Guard Rail - 3-Rib, 5' x 15"

Protect your warehouse, office walkways, conveyors or electrical equipment. A man's choice.
  • Designed for permanent installation.
  • 11-gauge steel guard rail.
  • Up to 12,000 lb. impact rating at 4 mph.
  • Powder-coated OSHA yellow for more visibility.
  • Posts and Self-Closing Gate sold separately.
Stand alone rail length is 4" shorter than listed
MODEL
NO.		 DESCRIPTION HEIGHT ASSEMBLED
LENGTH		 WT.
(LBS.)		 PRICE EACH IN STOCK
SHIPS TODAY
1 4+
H-7722 Bolt-On
3-Rib		 15" 5' 44 $140 $130  ADD
SHIPS VIA MOTOR FREIGHT
DIMENSIONS:
  • Actual Length: 56"
  • Vertical Distance Between Rails (Double Post): 9 1/2"
  • Clearance from Bottom Rail to Ground (Single/Double Post): 2 3/4"
  • Assembled length only includes one rail and one post.

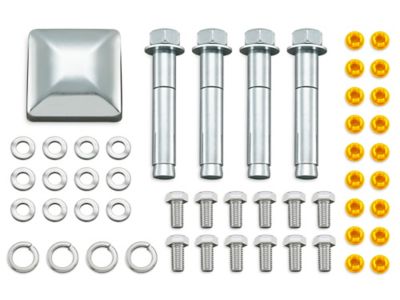

HARDWARE:
  • Rails do not include hardware.
  • Included with Posts:
    • 7/8 x 5 1/2" Concrete anchoring bolts & washers
    • 1/2 x 1" Rail mounting bolts & washers
    • Rail mounting bolts & washers
    • Steel post cap
    • Plastic plugs for unused mounting holes
SPECIFICATIONS:
  • Not UV resistant. Will fade over time with consistent sun exposure.
Ships Via Motor Freight
Availability: In Stock
Unit Weight: 48 lbs.
Instructions
Catalog Page 577
Email Item
SPECIFICATIONSMETRICIMPERIAL
Height38 cm15"
Assembled Length152 cm5 ft.
Weight20 Kg44 lbs.
Ships Via Motor Freight
Availability: In Stock
Unit Weight: 48 lbs.
