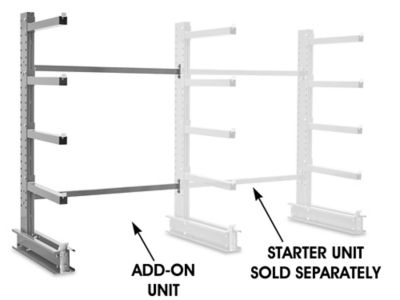

Add-On Unit for Single-Sided Cantilever Rack, 76 x 49 x 96"

Extend your existing storage space by connecting additional racks.
  • Attaches to starter unit to create a continuous rack system.
  • 12-gauge steel.
  • Includes upright with base, arms, connecting brace set and hardware.
MODEL
NO.
DIMENSIONS
W x D x H
ARM
LENGTH
NO. OF
ARMS
ARM CAP.
(LBS.)
CAPACITY/
UNIT (LBS.)
WT.
(LBS.)
PRICE EACH ADD TO
CART
1 2+
H-6643-ADD 76 x 49 x 96" 36" 4 430 5,700 217 $645 $625  ADD
SHIPS UNASSEMBLED VIA MOTOR FREIGHT
Limit 1.
DIMENSIONS:
  • Width:
    • Column: 3 1/8"
    • Base (Assembled): 7 7/8"
  • Depth:
    • Base with Lip: 33"
    • Base without Lip: 36"
  • Height:
    • Arm Lip: 1 1/4"
    • Base Lip: 3 1/4"
    • Base: 7 7/8"
    • Usable from Base to First Arm: 6 3/4"
  • Column Hole Diameter: 15/16"
  • Pin Diameter: 7/8"
MATERIAL:
  • 12 gauge steel
CAPACITY:
  • Arm capacity listed in the chart is per arm.
HARDWARE:
  • Assembly hardware located in separate box. One box of hardware is needed for each base and column.
  • Brace hardware is already put on braces.
PARTS:
USAGE:
  • Not intended for outdoor use.
SPECIFICATIONSMETRICIMPERIAL
WIDTH x DEPTH x HEIGHT193 x 124 x 244 cm76 x 49 x 96"
ARM LENGTH91 cm36"
ARM CAPACITY195 kg430 lbs.
CAPACITY/UNIT2586 kg5,700 lbs.
WEIGHT98 kg217 lbs.
