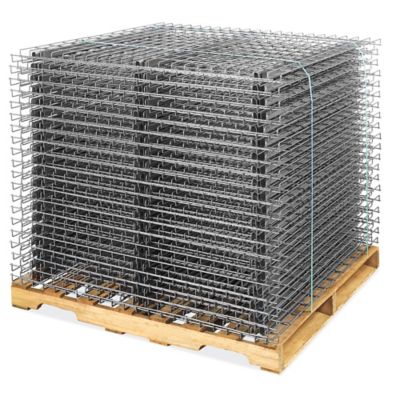

Pallet Rack Wire Decking Skid Lot - 46" Wide, 48" Deep

Waterfall edge provides extra strength and a secure fit.
  • Drops easily into place. No tools required.
  • Galvanized 2 1/2 x 4" mesh maximizes sprinkler efficiency.
  • Resists rust and corrosion.
  • Includes 3 support channels.
  • Compatible Pallet Rack Sizes:


Pallet Rack Wire Decking
MODEL
NO.
DIMENSIONS
W x D
FOR RACKS LOAD CAP.
(LBS.)
QTY./
SKID
WT.
(LBS.)
PRICE
PER DECK
ADD TO
CART
WIDTH DEPTH
H-5725S 46 x 48" 96 or 144" 48" 2,500 40 23 $34  Sub: H-5725
SHIPS VIA MOTOR FREIGHT
DIMENSIONS:
  • Actual: 45 3/4 x 49" (W x D)
  • Support Channel Length: 44 1/4"
MATERIAL:
  • Pre-galvanized finish
  • Wire: 6 gauge
  • Support Channel: 13 gauge
QUANTITY:
  • Requires two decks per level for 96" wide Pallet Racks.
  • Requires three decks per level for 144" wide Pallet Racks.
COMPATIBILITY:
  • Compatible with 1 5/8" pallet rack step beams.
CAPACITY:
  • Capacity listed in the chart is for each deck based on evenly distributed loads.
    • Note: Using the deck does not add additional capacity beyond the total beam capacity.
SPECIFICATIONSMETRICIMPERIAL
WIDTH x DEPTH117 x 122 cm46 x 48"
FOR RACK WIDTH244 or 366 cm Wide96 or 144" Wide
FOR RACK DEPTH122 cm Deep48" Deep
LOAD CAPACITY1,134 Kg2,500 lbs.
WEIGHT10 Kg23 lbs.
