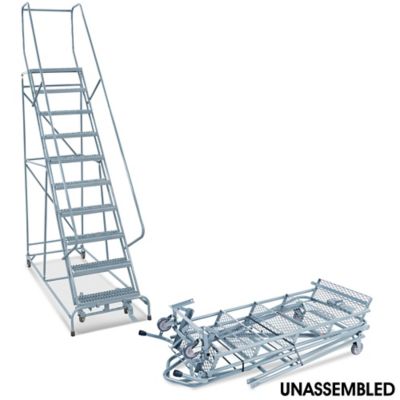

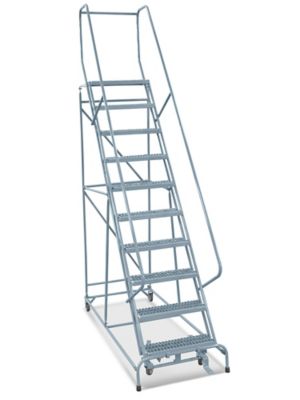

10 Step Grip Step Ladder - Unassembled with 10" Top Step

OSHA AND ANSI COMPLIANT

Keep your footing when washing tanks or greasing machinery. Works well in factories or warehouses with wet, oily or frosty conditions.
  • 24" wide serrated metal steps.
  • 59° incline.
  • Four 4" diameter casters: 2 swivel, 2 rigid.
  • 450 lbs. capacity.
  • Reduce your freight costs. Ships knocked down.
  • Quick and easy assembly. No special tools required.
  • Drop ships in 2 days from MI, GA, CA or TX.
  • California only: To meet OSHA regulations, ladders ship with a 42" handrail, increasing overall height to 142". Base is 42" wide.
MODEL
NO.
STEPS PLATFORM
HEIGHT
OVERALL
HEIGHT
BASE
W x D
WT.
(LBS.)
PRICE EACH ADD TO
CART
1 2+
H-5230U-10 10 100" 130" 32 x 72" 186 $728 $716 ADD

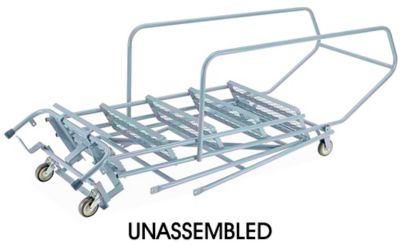

SHIPS UNASSEMBLED
DIMENSIONS:
  • Steps: 24 x 7"
    • Top Step: 24 x 10"
  • Standard Handrail Height: 30"
  • Unassembled (Shipping): 120 x 32 1/2 x 17"


MATERIAL:
  • 16 gauge steel

FEATURES:
  • Front wheels lock when stepping on the first step.

SPECIFICATIONS:
  • Meets OSHA 1910.29 and ANSI A14.7 standards.


SPECIFICATIONSMETRICIMPERIAL
PLATFORM HEIGHT254 cm100"
OVERALL HEIGHT330 cm130"
BASE WIDTH x DEPTH81 x 183 cm32 x 72"
WEIGHT84 Kg186 lbs.
AVAILABLE PARTS/ACCESSORIES FOR THE H-5230U-10:
