Gravity Roller Conveyor - Heavy Duty, 30" x 5'

Warehouse helper. Slide your products down the manual gravity fed conveyor.
  • Recommended for staging products on shipping lines or in assembly areas.
  • Free-spinning gravity rollers improve packing speed.
  • 3" roller centers.
  • 10-gauge steel frame.
  • Bolt steel frames together for longer runs.
  • Use with H-Stands, sold separately.

    Gravity Roller
1.9" Diameter Rollers
* Capacity based on evenly distributed live load
MODEL
NO.
WIDTH SECTION
LENGTH
FRAME
CAP.* (LBS.)
WT.
(LBS.)
PRICE EACH ADD TO
CART
OVERALL BTWN. FRAME 1 2+
H-4070 30" 27" 5' 3,100 133 $330 $314   ADD
SHIPS VIA MOTOR FREIGHT
DIMENSIONS:
  • Frame: 3 1/2" H x 1 1/2" Flange
  • Axles: 7/16", Spring loaded hex shaft
  • Gap Between Rollers: 1.1"
MATERIAL:
  • Frame: Powder coated steel
FEATURES:
  • (20) Rollers
  • Bearings: Labyrinth sealed and grease packed
CAPACITY:
  • Frame: 620 lbs per ft
USAGE:
  • For stability, 3 rollers should be under product at all times.
SPECIFICATIONSMETRICIMPERIAL
OVERALL WIDTH76 cm30"
WIDTH BTWN. FRAME69 cm27"
SECTION LENGTH1.5 M5'
FRAME CAP.*1406 Kg3,100 lbs.
WEIGHT60 Kg133 lbs.
ACCESSORIES:

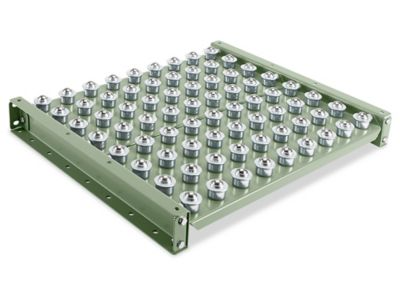

  • H-5584 Ball Transfer Table - 30" x 2'

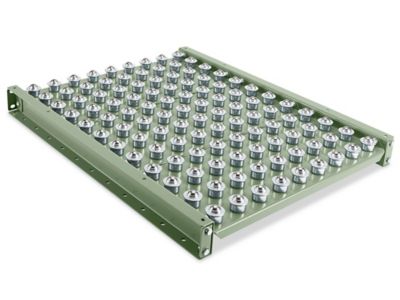

  • H-5585 Ball Transfer Table - 30" x 3'

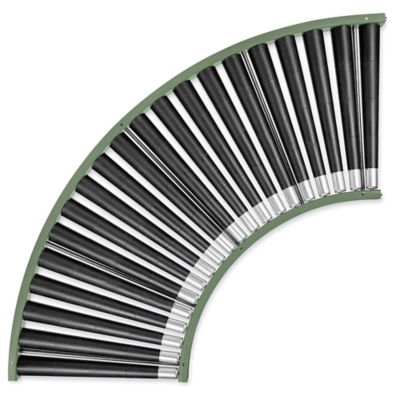

  • H-6383 Gravity Roller Conveyor - 90° Curved, 30"

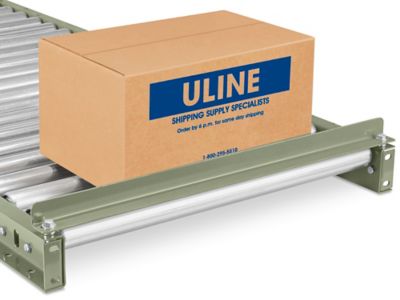

  • H-6386 Conveyor End Stop - 30"
  • H-6906 Gravity Roller Conveyor Side Rails - 5'

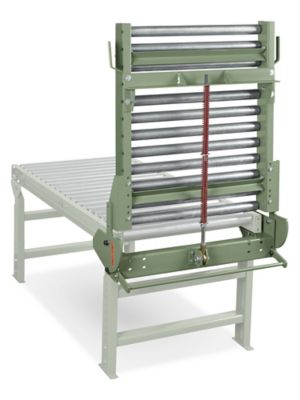

  • H-6909 Heavy Duty Conveyor Gate - 30" x 3'
PARTS:
  • H-4075 Replacement Rollers for Heavy Duty Gravity Roller Conveyors - 27"
