Air Compressor - Vertical Tank, 30 Gallon

Quickly blow debris from workstations, inflate dunnage bags and operate air tools.
  • Heavy-duty. Twin cylinder, oil-lubricated cast iron pump.
  • Belt drive.     • 15 amps.
  • 10” semi-pneumatic wheels for easy portability.

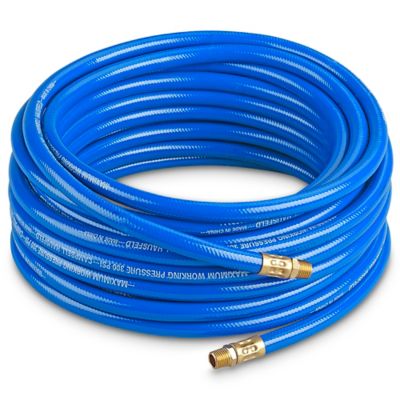

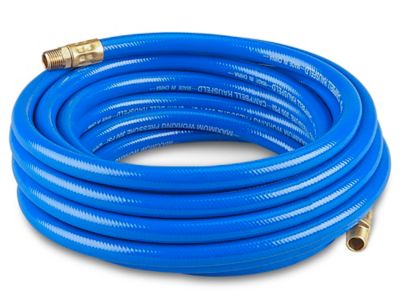

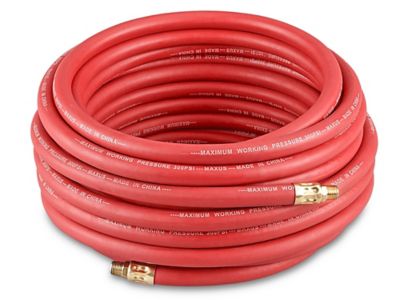

  • Use with 25' PVC, 50' PVC and 50' Rubber Air Hoses, sold separately.
MODEL
NO.
DESCRIPTION VOLTS CAPACITY
(GALLONS)
CFM @
90 PSI
MAX.
PSI
WT.
(LBS.)
PRICE
EACH
ADD TO
CART
H-3862 Vertical 120 30 5.5 135 190 $699   ADD
SHIPS VIA MOTOR FREIGHT
DIMENSIONS:
  • Overall: 28 x 28 x 29" (L x W x H)
  • Outlet (NPT): 1/4"
FEATURES:
  • Does not come with oil. Use 30 weight non-detergent oil.
  • Recommended to change oil every 1,000 hours of use.
  • Single stage, one phase
USAGE:
  • Compatible with compressor or synthetic motor oil.
    • Do not use standard motor oil.
  • Attaching Air Hose (Not included):
    • 3/8" Female plug adapter required.
    • Adapter included with H-3863- Accessory Kit.
SPECIFICATIONS:
  • 60 Hz
  • 2.0 HP
  • 89 dBA
  • 6.5 CFM @ 40 PSI
  • Start-up: 15 amps
SPECIFICATIONSMETRICIMPERIAL
CAPACITY114 L30 gal.
VOLUME.16 cu.M/min @ 6.3 Kg/sq. cm5.5 CFM @ 90 PSI
MAX. PRESSURE9.5 Kg/sq. cm135 PSI
WEIGHT86 Kg190 lbs.
