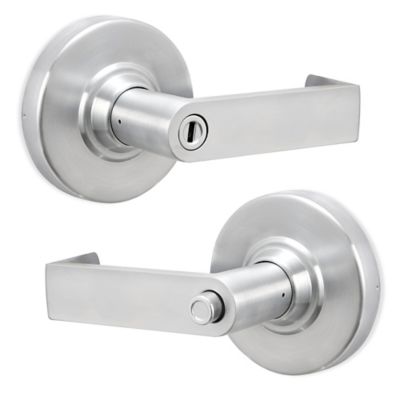

Schlage® Door Lockset - Heavy Duty, Privacy

Commercial quality handles for offices, libraries and apartment buildings.
  • Push-button lock on interior. Emergency unlock on exterior handle. For bathrooms and changing rooms.
  • The trusted name in construction, built for high-traffic doors.
  • Cast zinc body with satin chrome finish.
  • For left or right-opening doors with standard 2 3/4" backset.
  • Set includes interior and exterior handle, strike plate, latch and mounting hardware.
Tested for 16 million uses
MODEL
NO.		 DESCRIPTION EXTERIOR
HANDLE		 INTERIOR
HANDLE		 WT.
(LBS.)		 PRICE EACH IN STOCK
SHIPS TODAY
1 6+
H-12816C Privacy Emergency Pin Push Button 5 $580 $560  ADD
ANSI/BHMA A156.2 Grade 1
DIMENSIONS:
  • Projection from Door: 2 15/16"
  • Handle: 4 9/16"
  • Rose: 3 7/16"
  • Throw Latchbolt: 1/2"
  • Faceplate: 2 1/4 x 1 1/8"
  • Strike: 4 7/8 x 1 1/4"
COMPATIBILITY:
  • Fits doors 1 5/8 - 2 1/8" thick.
MATERIAL:
  • Rose: Wrought brass
USAGE:
  • Either lever operates latchbolt unless locked by pushbutton inside.
  • Button automatically releases when inside lever is turned or door is closed.
  • Emergency release in outside lever.
SPECIFICATIONS:
  • Certified for more than 1,000,000 cycles (uses), tested for over 16,000,000.
  • ADA compliant for ease of accessibility.
  • UL and cUL listed for 3-hour fire doors.
  • Fits ANSI/SDI A250.14 Door Prep.
MODEL NUMBER:
  • Schlage®: ND40 RHO 626
Availability: In Stock
Unit Weight: 4.98 lbs.
