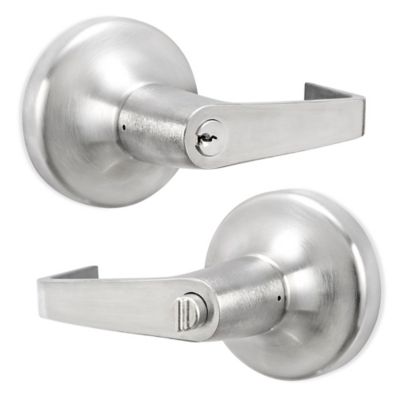

Accentra® Door Lockset - Medium Duty, Entry

Commercial quality handles for offices, libraries and apartment buildings.
  • Exterior keyed lock with interior thumb turn. Door stays unlocked until re-locked. For offices and entryways.
  • Cast zinc body with satin chrome finish.
  • For left or right-opening doors with standard 2 3/4" backset.
  • Set includes interior and exterior handle, strike plate, latch and mounting hardware.
Tested for 1 million uses
MODEL
NO.		 DESCRIPTION EXTERIOR
HANDLE		 INTERIOR
HANDLE		 WT.
(LBS.)		 PRICE EACH IN STOCK
SHIPS TODAY
1 6+
H-12814C Entry Keyed Thumb Turn 4 $325 $315  ADD
ANSI/BHMA A156.2 Grade 1
DIMENSIONS:
  • Projection from Door: 3 5/16"
  • Handle: 5 1/4"
  • Rose: 3 5/16"
  • Throw Latchbolt: 1/2"
  • Faceplate: 2 1/4 x 1 1/8"
  • Strike: 4 7/8 x 1 1/4"
  • Backset: 2 3/4"
COMPATIBILITY:
  • Fits doors 1 3/4 - 2" thick.
MATERIAL:
  • Rose: Wrought brass
FEATURES:
  • Keyed different
INCLUDES:
  • (2) Keys
USAGE:
  • Either lever operates latchbolt except when outside lever is locked from inside.
  • Pushing turn button in inside lever locks outside lever.
  • Turn button releases when inside lever is turned or key is rotated.
  • Outside lever may be retained in locked position by pushing an rotating turn button 90°.
SPECIFICATIONS:
  • ANSI/BHMA A156.2, Series 4,000, Grade 1:
    • Tested and certified for more than 1,000,000 cycles (uses).
  • ADA compliant for ease of accessibility.
  • UL and cUL listed for 3-hour fire doors.
  • Fits ANSI/SDI A250.14 Door Prep.
MODEL NUMBER:
  • Accentra®: 4707LN 626
Availability: In Stock
Unit Weight: 4.23 lbs.
