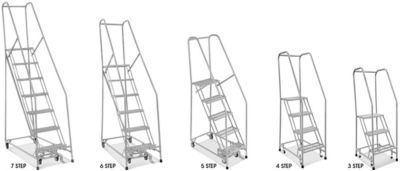

Narrow Aisle Rolling Ladders

OSHA AND ANSI COMPLIANT
Slim design fits well when warehouse space is an issue.
  • 16" wide expanded metal steps.
  • 59° incline.
  • 3 and 4 step models have four 2" spring-loaded swivel casters.
  • 5 to 7 step models have four 4" diameter casters: 2 swivel, 2 rigid.
  • 450 lb. capacity.
  • Drop ships in 15 days from MI, GA, CA or TX.

    California only: To meet OSHA regulations, 5 to 7-step ladders ship with a 42" handrail, adding 12" to the overall height.
    Narrow Aisle Ladders

10" DEEP TOP STEP ROLLING LADDERS – ASSEMBLED


MODEL
NO.		 STEPS PLATFORM
HEIGHT		 OVERALL
HEIGHT		 LOAD
CAPACITY		 BASE
W x D		 WT.
(LBS.)		 PRICE EACH ADD TO
CART
1 2+
H-5071 3 30" 60" 450 lbs. 20 x 26" 43 $258   $250    ADD
H-5072 4 40" 70" 20 x 31" 56 331 324  ADD
H-5073 5 50" 80" 20 x 40" 85 424 415  ADD
H-5074 6 60" 90" 24 x 46" 102 470 464  ADD
H-5075 7 70" 100" 24 x 53" 111 516 502  ADD

10" DEEP TOP STEP ROLLING LADDERS – UNASSEMBLED
MODEL
NO.		 STEPS PLATFORM
HEIGHT		 OVERALL
HEIGHT		 LOAD
CAPACITY		 BASE
W x D		 WT.
(LBS.)		 PRICE EACH ADD TO
CART
1 2+
H-5071 3 30" 60" 450 lbs. 20 x 26" 43 $258   $250    ADD
H-5072 4 40" 70" 20 x 31" 56 331 324  ADD
H-5073 5 50" 80" 20 x 40" 85 424 415  ADD
H-5074 6 60" 90" 24 x 46" 102 470 464  ADD
H-5075 7 70" 100" 24 x 53" 111 516 502  ADD

20" DEEP TOP STEP ROLLING LADDERS – ASSEMBLED
MODEL
NO.		 STEPS PLATFORM
HEIGHT		 OVERALL
HEIGHT		 LOAD
CAPACITY		 BASE
W x D		 WT.
(LBS.)		 PRICE EACH ADD TO
CART
1 2+
H-5071 3 30" 60" 450 lbs. 20 x 36" 58 $345   $339    ADD
H-5072 4 40" 70" 20 x 41" 71 397 392  ADD
H-5073 5 50" 80" 20 x 50" 100 503 497  ADD
H-5074 6 60" 90" 24 x 56" 117 603 596  ADD
H-5075 7 70" 100" 24 x 63" 126 644 630  ADD

20" DEEP TOP STEP ROLLING LADDERS – UNASSEMBLED
MODEL
NO.		 STEPS PLATFORM
HEIGHT		 OVERALL
HEIGHT		 LOAD
CAPACITY		 BASE
W x D		 WT.
(LBS.)		 PRICE EACH ADD TO
CART
1 2+
H-5071 3 30" 60" 450 lbs. 20 x 36" 58 $345   $339    ADD
H-5072 4 40" 70" 20 x 41" 71 397 392  ADD
H-5073 5 50" 80" 20 x 50" 100 503 497  ADD
H-5074 6 60" 90" 24 x 56" 117 603 596  ADD
H-5075 7 70" 100" 24 x 63" 126 644 630  ADD
