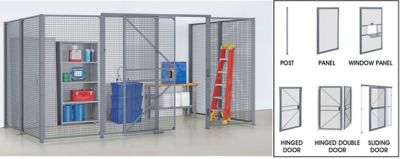

Modular Wire Security Rooms

BUILD-IT-YOURSELF

Protect and control access to inventory and equipment. Create enclosures and work areas to fit your specific needs.
  • Combine posts, panels and doors.
  • Posts include hardware for floor and panel mounting.
  • Doors include built-in cylinder lock, keys and mounting hardware.
  • Heavy-duty powder-coated steel construction.
  • Posts - 2" square 11-gauge steel posts. 1/4" thick steel base plates with two mounting holes.
  • Panel - 10-gauge wire mesh panels with 1 1/2" square openings. 14-gauge steel frame.
  • Window Panel - 23 x 19 1/2" service window with drop-down writing shelf.
  • Hinged Door - Swings open left or right. Continuous piano hinge provides smooth closure.
  • Hinged Double Doors - Extra wide opening for easy loading of bulky items. Piano hinge.
  • Sliding Door - For limited spaces. Slides against room to avoid warehouse traffic.

MODULAR – CONFIGURE YOUR OWN
MODEL
NO.		 DESCRIPTION WIDTH HEIGHT WT.
(LBS.)		 PRICE EACH ADD TO
CART
1 4+
 H-7071  Post 2" 8' 22 $120 $115  ADD
 H-8303 10' 26 150 145  ADD
 H-9116  Panel 2' 8' 34 160 150  ADD
 H-9117 10' 42 205 195  ADD
 H-9118 3' 8' 44 190 175  ADD
 H-9119 10' 55 235 225  ADD
 H-7070 4' 8' 54 220 210  ADD
 H-8304 10' 64 280 270  ADD
 H-11789  Window Panel 4' 8' 73 275 265  ADD
 H-11788 10' 93 345 335  ADD
 H-11786  Hinged Door 3' 8' 60 285 275  ADD
 H-11781 10' 74 355 345  ADD
 H-7069 4' 8' 79 300 290  ADD
 H-8305 10' 88 380 370  ADD
H-12579  Hinged Double Door 6' 8' 115 585 565  ADD
H-12580

8'

 144 630 610  ADD
 H-11782  Sliding Door

3'

8'

75

 480 460

 ADD
 H-11783

10'

84

 560 535

 ADD
 H-8306 4' 8' 84 505 485  ADD
 H-8307 10' 86 580 555  ADD
Panel and door height are 2" shorter than listed. SHIPS VIA MOTOR FREIGHT
