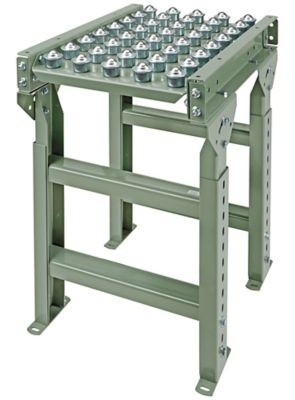

Ball Transfer Tables

Rotate products easily for quick positioning or inspection.
  • Used at conveyor intersections and production line stations.
  • 10-gauge steel frame with 1" diameter steel balls set 1/4" high.
  • 65 lbs. capacity per ball.
  • 3" ball centers.
  • Capacity based on evenly distributed live load.

    Ball Transfer Tables

BALL TRANSFER TABLES


MODEL
NO.
WIDTH SECTION
LENGTH
FRAME
CAP. (LBS.)
WT.
(LBS.)
PRICE EACH ADD TO
CART
OVERALL BTWN. FRAME 1 2+
H-5580 18" 15" 2'   760 41 $310 $295  ADD
H-5581 3' 1,140 62   455   430  ADD
H-5582 24" 21" 2'   760 53   435   415  ADD
H-5583 3' 1,140 79   645   615  ADD
H-5584 30" 27" 2'   760 64   555   530  ADD
H-5585 3' 1,140 96   830   790  ADD
          SHIPS VIA MOTOR FREIGHT

H-STANDS - HEAVY DUTY


MODEL
NO.
ROLLER
DIAM.
OVERALL
WIDTH
ADJUSTABLE
HEIGHT
STAND
CAP. (LBS.)
WT.
(LBS.)
PRICE EACH ADD TO
CART
1 4+
H-3413 1.9" 18" 24 - 36" 1,500 21 $92     $87      ADD
H-3414 24" 23  ADD
H-4073 30" 26  ADD
          SHIPS VIA UPS
