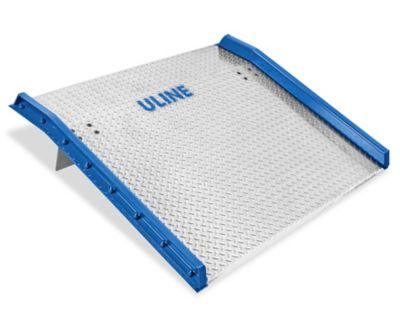

Dock Boards

FOR FORKLIFT USE

High-capacity bridge between dock and trailer.

Bolted steel curbs prevent runoffs and add strength.
Aluminum diamond plate surface gives non-slip traction.
Gradual 11° bend keeps edges flush with dock and trailer.
Safety legs keep dock board in place.
72" Extra-Wide - Unload a full trailer without repositioning dock board.

PLEASE ADD 5,000 LBS. TO THE BOARD CAPACITY WHEN USING 3-WHEEL FORKLIFTS OR TRUCKS USING
A PAPER ROLL CLAMP.

				Drop ships in 2 days from TX.
MODEL NO.	SIZE* W x L	CAPACITY** (LBS.)	WT. (LBS.)	HEIGHT DIFFERENTIAL***	PRICE EACH	ADD TO CART
MODEL NO.	SIZE* W x L	CAPACITY** (LBS.)	WT. (LBS.)	HEIGHT DIFFERENTIAL***	PRICE EACH	ADD TO CART
H-2744	54 x 48"	10,000	154	5"	$719
H-2745	54 x 48"	15,000	186	5"	919
H-1443	60 x 36"	10,000	127	3"	589
H-1444	60 x 36"	15,000	154	3"	729
H-1288	60 x 48"	10,000	165	5"	749
H-1289	60 x 48"	15,000	201	5"	939
H-1290	60 x 60"	10,000	202	7"	919
H-1291	60 x 60"	15,000	247	7"	1,129
H-1506	60 x 72"	10,000	240	8 1/2"	1,139
H-1507	60 x 72"	15,000	294	8 1/2"	1,379
H-1834	72 x 36"	10,000	144	3"	649
H-1835	72 x 36"	15,000	177	3"	799
H-1836	72 x 48"	10,000	187	5"	839
H-1837	72 x 48"	15,000	230	5"	1,049
H-1838	72 x 60"	10,000	230	7"	1,029
H-1839	72 x 60"	15,000	284	7"	1,299
*Usable width about 3" less than overall width.
**Capacity = Triple the capacity of your forklift.
***Vertical distance between dock floor and truck bed.
